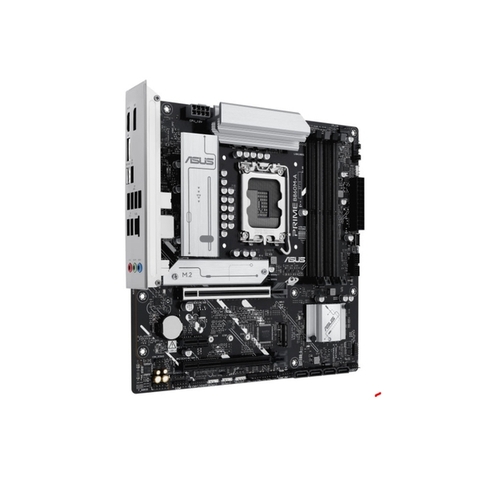

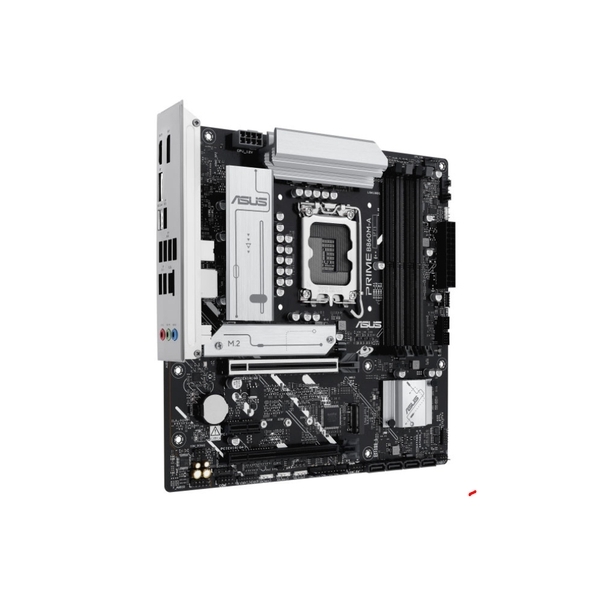

Mainboard Asus Prime B860M-A-CSM (Intel B860/ Socket 1851/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)
| Chipset | Intel B860 |
| Socket | Intel LGA 1851 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Khe cắm RAM | 4 khe ram |
| Loại RAM | DDR5 |
| Bus RAM hỗ trợ | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
| Chi tiết Vga | 2 x DisplayPort 1 x HDMI® ports |
| Kết nối mạng | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) | 1 x Realtek 2.5Gb Ethernet |
| Khe cắm trong | Intel® Core™ Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.Asus.Com/support/download-center/ for the list of supported peripherals. |
| Khe cắm mở rộng | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel®B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Cổng giao tiếp ngoài | 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Âm thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC |
