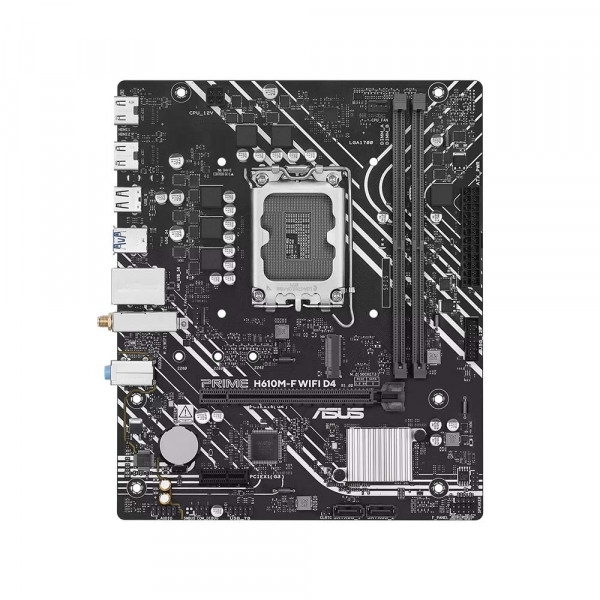

Mainboard Asus Prime H610M-F WIFI D4 (Intel H610/ Socket 1700/ M-ATX/ 2 khe ram)
| Chipset | Intel H610 |
| Socket | Intel LGA 1700 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th GenProcessors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Khe cắm RAM | 2 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Chi tiết Vga | 2 x HDMITM port |
| Kết nối mạng | 1Gb Ethernet |
| Thông số (Lan/Wireless) | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 |
| Khe cắm trong | Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 2 x SATA 6Gb/s ports |
| Khe cắm mở rộng | Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.Asus.Com/support/ for the list of supported peripherals. |
| Cổng giao tiếp ngoài | 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 2 x HDMITM port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks |
| Âm thanh | Realtek 7.1 Surround Sound High Definition Audio CODEC |
