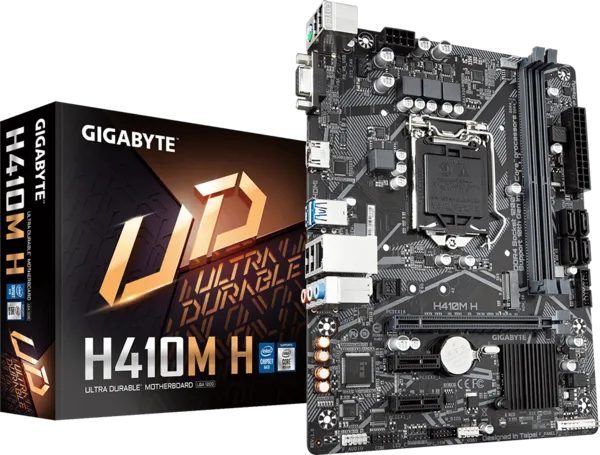

Mainboard Gigabyte H410M H (Intel H410/ Socket 1200/ M-ATX/ 2 khe ram)
Chipset Intel H410
Socket Socket 1200
Kích thước Main M-ATX
Hỗ trợ CPU Intel Socket LGA1200 cho bộ vi xử lý Intel Core thế hệ 11 & Intel Core thế hệ 10, bộ vi xử lý Pentium Gold và Celeron
Khe cắm RAM 2 khe ram
Loại RAM DDR4
Bus RAM hỗ trợ Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory m
Chi tiết Vga Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200 60 Hz
1 x HDMI ports, supporting a maximum resolution of 4096x2160 30 Hz
Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Kết nối mạng 1Gb Ethernet
Thông số (Lan/Wireless) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Khe cắm trong 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors
Refer to 1-7 Internal Connectors, for the installation notices for the M.2 and SATA connectors.
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
Khe cắm mở rộng 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Cổng giao tiếp ngoài 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Âm thanh Realtek ALC887 8-kênh CODEC Âm thanh HD
