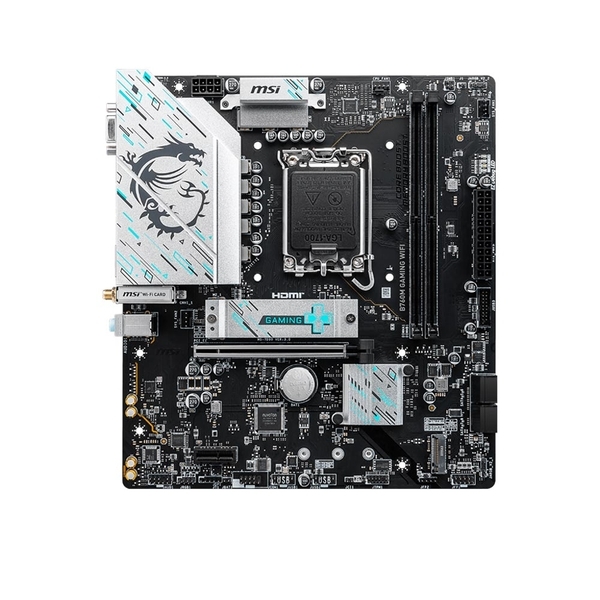

Mainboard MSI B760M GAMING WIFI (Intel B760/ Socket 1700/ M-ATX/ 2 khe ram/ DDR5/ 2.5 Gigabit LAN)
| Chipset | Intel B760 |
| Socket | Intel LGA 1700 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Khe cắm RAM | 2 khe ram |
| Loại RAM | DDR5 |
| Bus RAM hỗ trợ | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. Overclocking frequency: • 1DPC 1R Max speed up to 8000+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Chi tiết Vga | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Kết nối mạng | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Thông số (Lan/Wireless) | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Khe cắm trong | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| Khe cắm mở rộng | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| Cổng giao tiếp ngoài | VGA Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ DisplayPort USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) |
| Âm thanh | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
